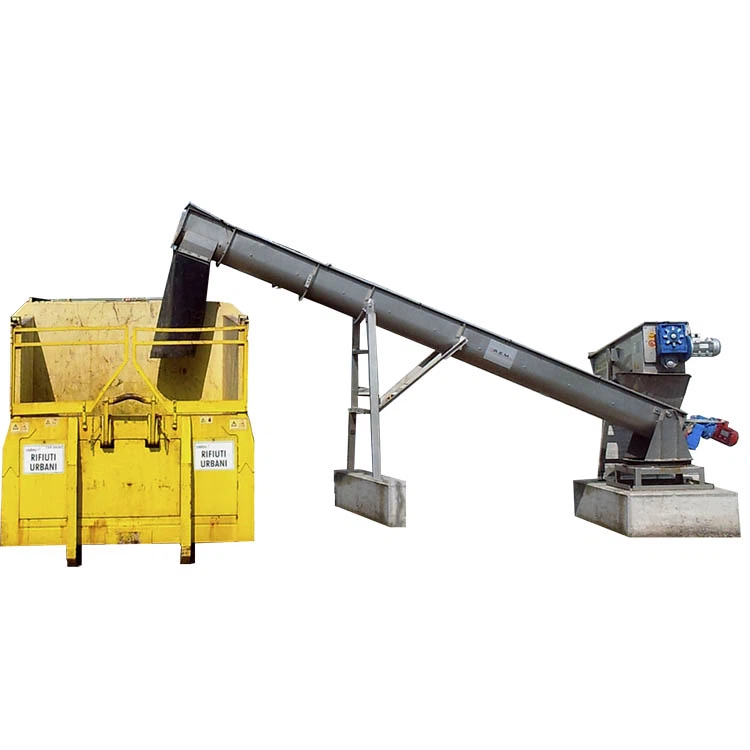

Inclined Screw Conveyor
The inclined screw conveyor is a reliable and efficient mechanical conveyor system that utilizes a rotating screw blade to transport materials on a sloping plane. It is known as an incredibly versatile and economical method for conveying bulk materials. Its design enables it to effectively move various types of substances along an inclined trajectory, catering to diverse industrial needs. With its helical screw blade, this conveyor ensures smooth and consistent material transfer, making it a preferred choice in many industries. Its cost-effectiveness and adaptability further enhance its popularity as a reliable conveying solution.
Technical Parameters
|
Model |
LS160 |
LS200 |
LS250 |
LS315 |
LS400 |
LS500 |
LS630 |
LS800 |
LS1000 |
LS1250 |
|
|
Screw Diameter (mm) |
160 |
200 |
250 |
315 |
400 |
500 |
630 |
800 |
1000 |
1250 |
|
|
Pitch (mm) |
160 |
200 |
250 |
315 |
355 |
400 |
450 |
500 |
560 |
630 |
|
|
n |
112 |
100 |
90 |
80 |
71 |
63 |
50 |
40 |
32 |
25 |
|
|
Q |
7 |
13 |
22 |
31 |
62 |
98 |
140 |
200 |
280 |
380 |
|
|
n |
90 |
80 |
71 |
63 |
56 |
50 |
40 |
32 |
25 |
20 |
|
|
Q |
6 |
10 |
18 |
24 |
49 |
78 |
112 |
160 |
220 |
306 |
|
|
n |
71 |
63 |
56 |
50 |
45 |
40 |
32 |
25 |
20 |
16 |
|
|
Q |
5 |
8 |
14 |
19 |
39 |
62 |
90 |
126 |
176 |
245 |
|
|
n |
50 |
50 |
45 |
40 |
36 |
32 |
25 |
20 |
16 |
13 |
|
|
Q |
3.1 |
6.2 |
11 |
15.4 |
31 |
50 |
77 |
102 |
140 |
198 |
|
Remark:
“n”—rotary speed ( r/min)（Deviation is allowed in the 10% range）
“Q”— capacity (m3/h)
C. this inclined screw conveyor technical data is only for reference, please contact us for more technical data.
Advantage
Inclined screw conveyors are highly efficient and can be used to move a variety of materials, including powders, granules, and pellets. They are also relatively low-maintenance and require minimal operator intervention. Additionally, they are relatively inexpensive and can be easily customized to fit the needs of the application.

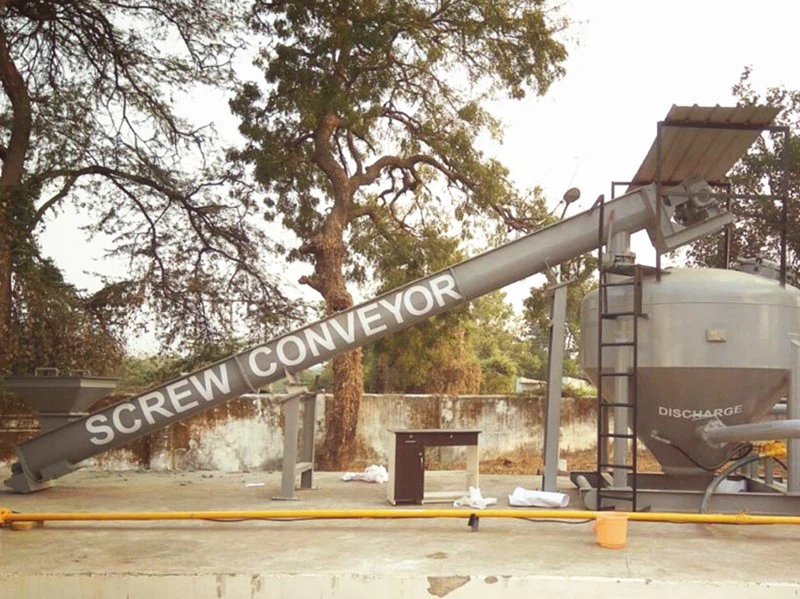

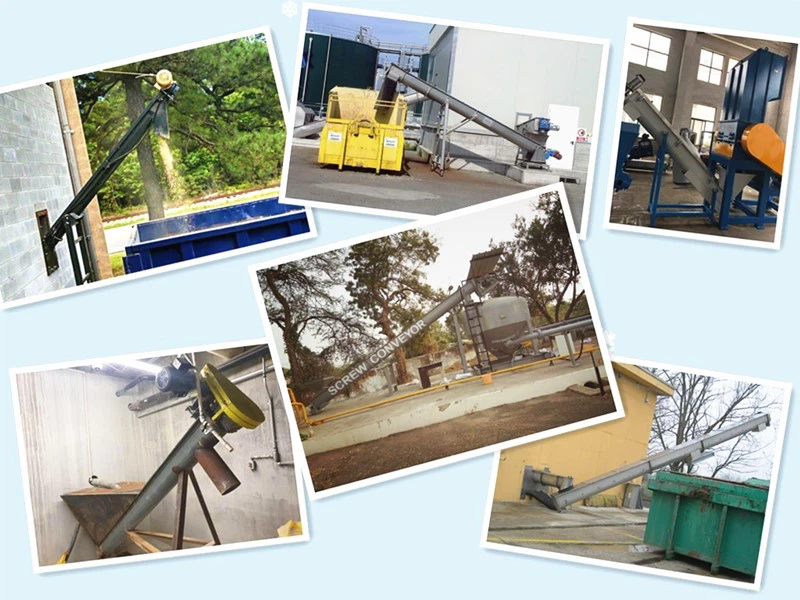

Working Site
Inclined screw conveyor is used in a variety of industries, including coal ash, chemical, electric power , agricultural, and construction. Inclined screw conveyor is used to move materials such as coal, sand, gravel, saw dust and other bulk materials from one location to another.
